Overview
Drag chain conveyors have an endless chain with feed dogs (cross ribs) which runs in a closed trough. This makes them suitable for transporting bulk materials. Depending on the design of the feed dogs and trough, material can be conveyed horizontally, on an incline or vertically. Bows can be installed allowing different conveyor sections to be combined.
This makes them particularly suitable for use as discharge conveyors, distribution conveyors and feeders. Material can be conveyed in the lower run as well as the upper run.
Features

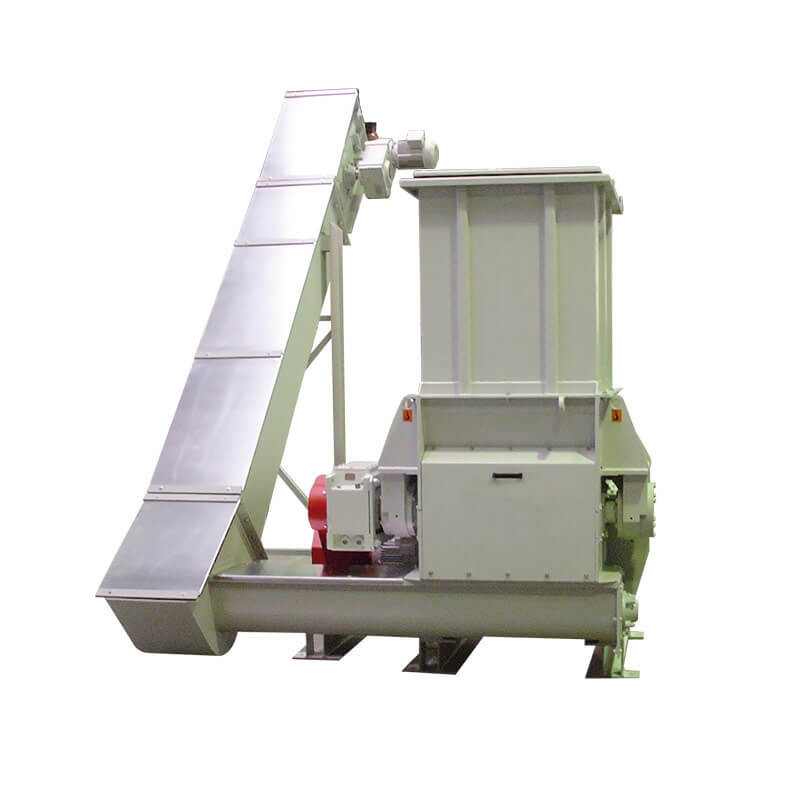

- The KKF 400/500/1K-U/TS drag chain conveyor transports the material in the lower belt and is an ingenious combination of a drag chain conveyor and screw conveyor. It is mainly used to dispose of material downstream of the shredder, or as a discharge conveyor downstream of a silo discharge. The screw shaft is driven via the conveyor chain. A separate drive is not required. Trough widths of 400 mm and 500 mm and screw diameters of 200 mm, 250 mm and 300 mm are available with this drag chain conveyor.
