Overview

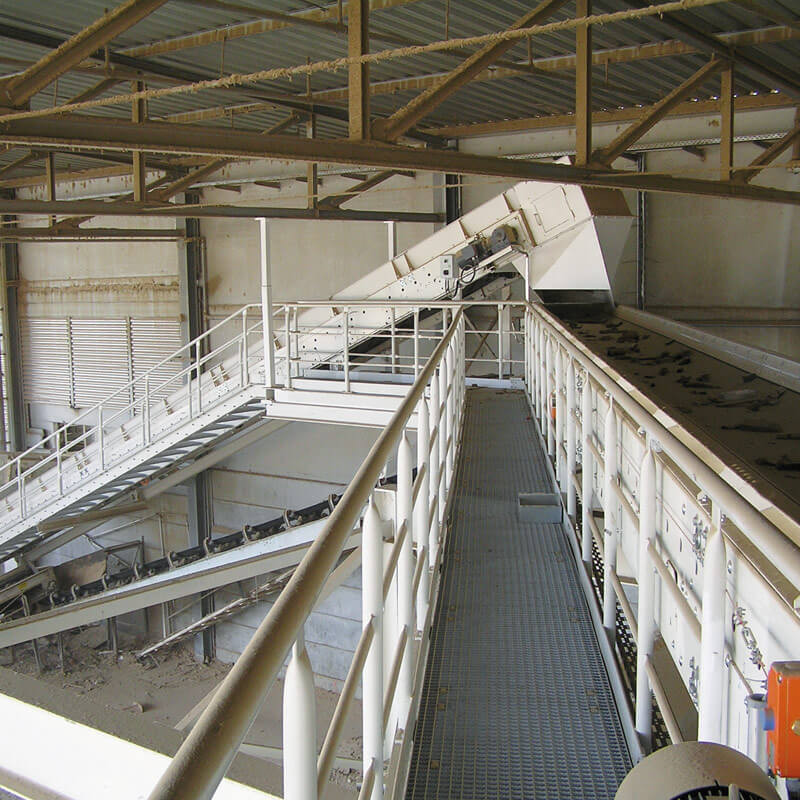

The VTB-M belt conveyor with 30-degree lateral trough angle features a particularly hard-wearing (optionally oil-resistant) rubber conveyor belt. With a delivery rate of between 0.8 and 1.8 m/s, and attachment points for drum and belt scraper systems and safety devices such as an emergency pull cord and speed monitor, this conveyor is ideal for transporting materials to and from shredders, screening machines, etc.
Features
- Areas of application:
- Sawmill waste management
- Old wood processing
- Biomass plants
- Alternative fuel (RDF) generation
- Domestic refuse processing
- Benefits in brief:
- Great flexibility, very tall, compact design
- Low maintenance thanks to reduced number of support rollers in the trough area
- Well sealed with belt sliding surface
- Enclosed design with easy access (safety, cleanliness, maintenance)
- Expandable with additional modules
- Side wall vertical extensions available in various heights
- Assembly requires neither welding nor special tools
- Belt widths from 650 to 1200 mm
- Length and drive variable to suit each individual application.
